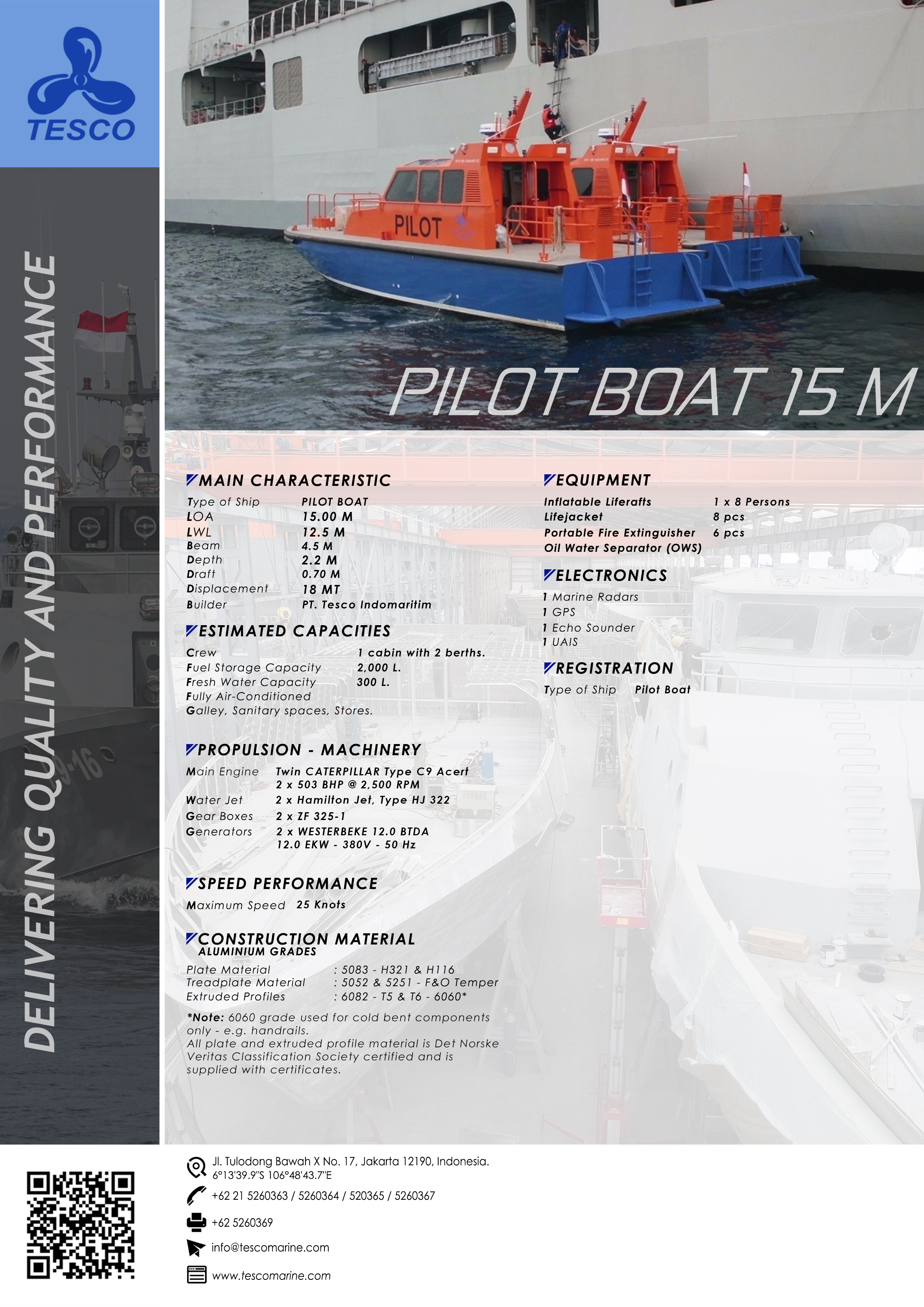

Pilot Boat 15M

SPECIFICATIONS

Main Characteristic

Type of Ship : PILOT BOAT
LOA : 15.0 M
LWL : 12.50 M
Beam : 4.5 M
Depth : 2.2 M
Draft : 0.70 M
Displacement : 18 MT

Estimated Capacities

Crew : 1 cabin with 2 berths
Fuel Storage Capacity : 2.000 L
Fresh Water Capacity : 300 L
Fully Air-Conditioned
Galley, Sanitary Spaces, Stores.

Propulsion

Main Engine :
Twin CATERPILLAR Type C9 ACERT
2 x 503 BHP @ 2,500 RPM
Water Jet : 2 x Hamilton Jet, Type HJ 322
Gear Boxes : 2 x ZF 325-1
Generators : 2 x WESTERBEKE Type 12 BTDA 12.0 EKW
380 V, 50 Hz

Speed Perfomance

Maximum Speed :
25 Knots

Equipment

Inflatable Liferafts : 1 x 8 Persons
Lifejacket : 33 pcs
Portable Fire Extinguisher : 4 pcs
Oil Water Separator (OWS)

Electronics

1 Marine Radars
1 GPS
1 Echo Sounder
1 UAIS
Information Sheet
