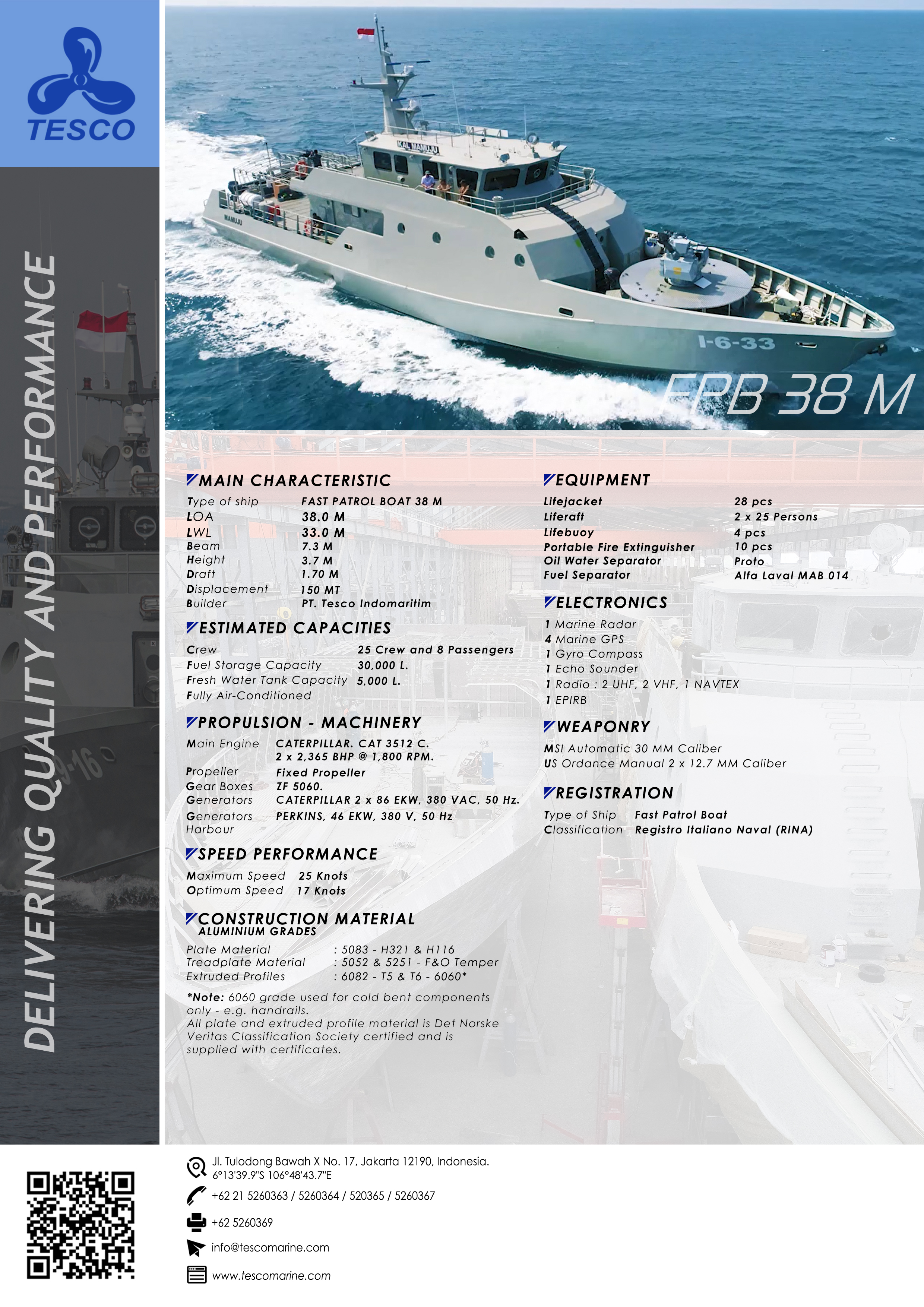

Fast Patrol Boat 38M
SPECIFICATIONS
Main Characteristic
Type of Ship : FAST PATROL BOAT 38M
LOA : 38.0 M
LWL : 33.00 M
Beam : 7.3 M
Height : 3.7 M
Draft : 1.70 M
Displacement : 150 MT
Builder : PT Tesco Indomaritim
LOA : 38.0 M
LWL : 33.00 M
Beam : 7.3 M
Height : 3.7 M
Draft : 1.70 M
Displacement : 150 MT
Builder : PT Tesco Indomaritim
Estimated Capacities
Crew : 25 Crew and 8 Passengers
Fuel Storage Capacity : 30,000 L
Fresh Water Capacity : 5,000 L
Fully Air-Conditioned
Fuel Storage Capacity : 30,000 L
Fresh Water Capacity : 5,000 L
Fully Air-Conditioned
Propulsion
Main Engine :
CATERPILLAR. CAT 3512 C.
2 x 2,365 BHP @ 1,800 RPM
Propeller : Fixed Propeller
Gear Boxes : ZF 5060
Generators : CATERPILLAR 2 x 86 EKW, 380 VAC, 50Hz
Generators Harbour : PERKINS, 46 EKW, 380 V, 50Hz
CATERPILLAR. CAT 3512 C.
2 x 2,365 BHP @ 1,800 RPM
Propeller : Fixed Propeller
Gear Boxes : ZF 5060
Generators : CATERPILLAR 2 x 86 EKW, 380 VAC, 50Hz
Generators Harbour : PERKINS, 46 EKW, 380 V, 50Hz
Equipment
Lifejacket : 28 pcs
Liferaft : 2 x 25 Persons
Lifebuoy : 4 pcs
Portable Fire Extinguisher : 10 pcs
Oil Water Seperator : Proto
Fuel Seperator : Alfa Laval MAB 014
Liferaft : 2 x 25 Persons
Lifebuoy : 4 pcs
Portable Fire Extinguisher : 10 pcs
Oil Water Seperator : Proto
Fuel Seperator : Alfa Laval MAB 014
Electronics
1 Marine Radars
4 Marine GPS
1 Gyro Compass
1 Echo Sounder
1 Radio : 2 UHF, 2VHF, 1 NAVTECH
1 EPIRB
4 Marine GPS
1 Gyro Compass
1 Echo Sounder
1 Radio : 2 UHF, 2VHF, 1 NAVTECH
1 EPIRB
Weaponry
MSI Automatic 30 MM Caliber
US Ordance Manual 2 x 12.7 MM caliber
US Ordance Manual 2 x 12.7 MM caliber
Speed Perfomance
Maximum Speed : 25 Knots
Optimum Speed : 17 Knots
Optimum Speed : 17 Knots
